Introduction to Studio
Learn how NarraLeaf Studio organizes projects, editors, and runtime workflows.
NarraLeaf Studio is a desktop editor for visual novels. Stories, characters, assets, interfaces, and release settings live in one NarraLeaf project. Routine authoring does not require external scripts.
Studio is in early development. Interface names and project formats may change between preview releases. Keep important projects under version control or maintain a separate backup.
What a project contains
A Studio project can contain:
- Stories, organized into stories, chapters, scenes, and actions.
- Characters, including forms, variants, and linked assets.
- Assets, including images, audio, and other project files.
- Pages, such as title, settings, save, history, and gallery screens.
- Game UI, such as dialog, choices, notifications, NVL, and stage HUDs.
- Blueprints for page, widget, and Game UI behavior.
- Localization data for source text, translations, and review state.
Studio writes this data into the project directory. Treat that directory as a unit when moving, backing up, or committing a project.
Pages and Game UI
Both are made in the UI editor, but they serve different roles.
| Type | Use | Size |
|---|---|---|
| Page | Complete screens such as title, settings, or save | Set when the page is created |
| Game UI | Dialog, choices, notifications, NVL, or stage content | Uses the project stage size |
Game UI is mounted into a slot. A project can have one active interface for each dialog, choice, notification, NVL, and other supported slot.
Editing and running

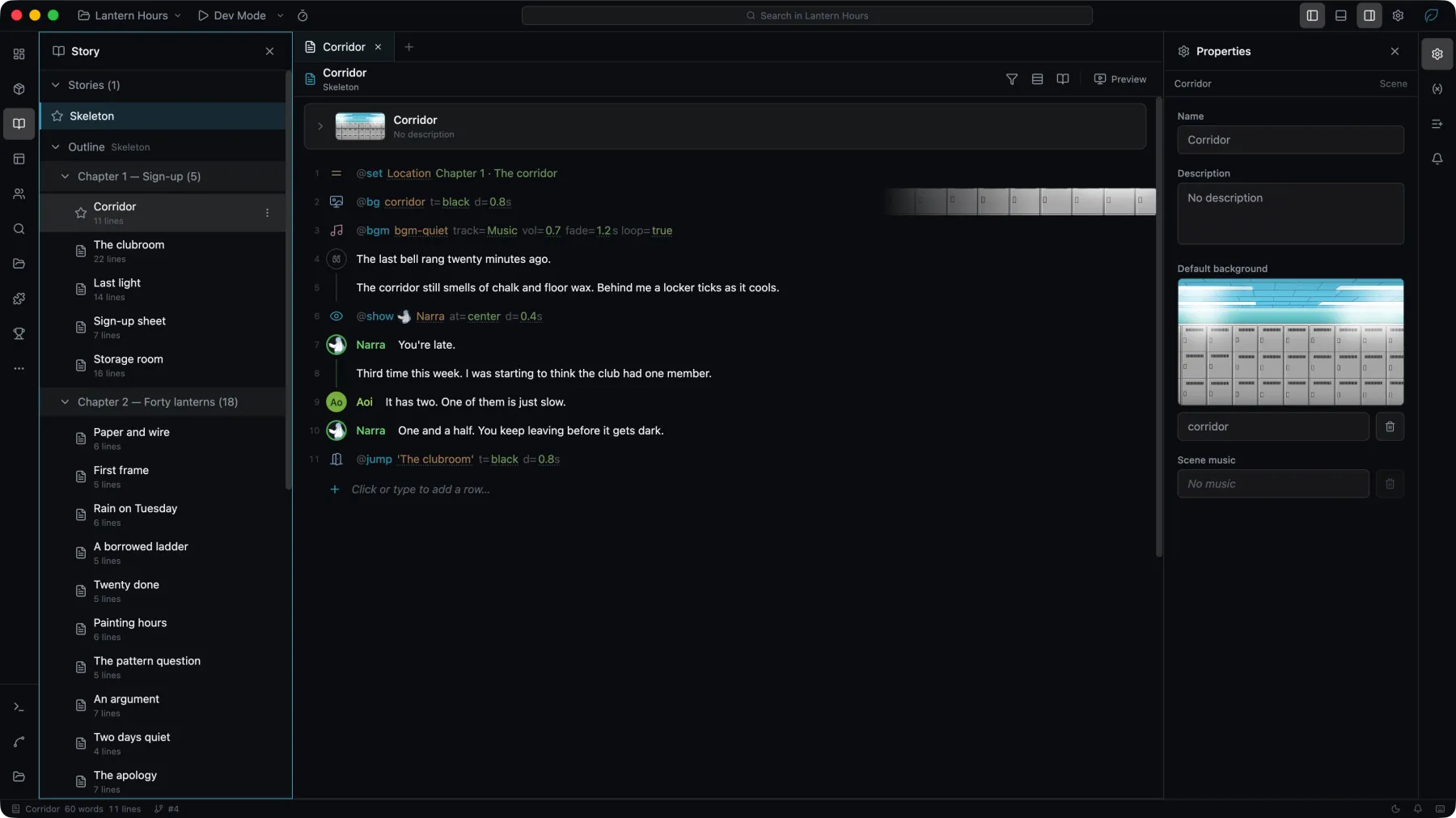

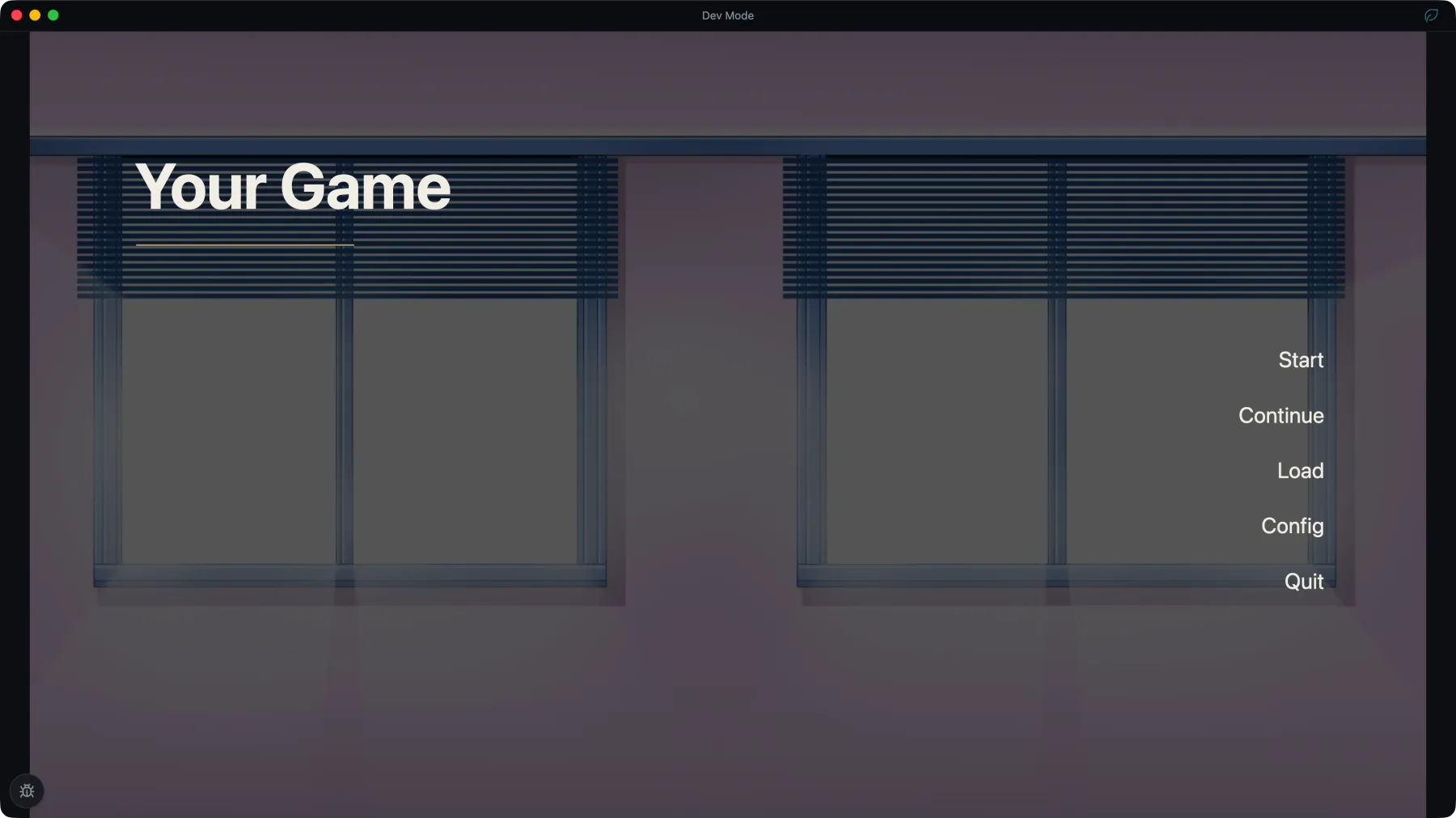

The workspace canvas is for layout and static checks. Use Dev Mode to verify real interactions, Blueprint execution, and Host API behavior. When the project is ready for players, use Build Release to create desktop or web artifacts.
